Body application
SPECIFICATIONS

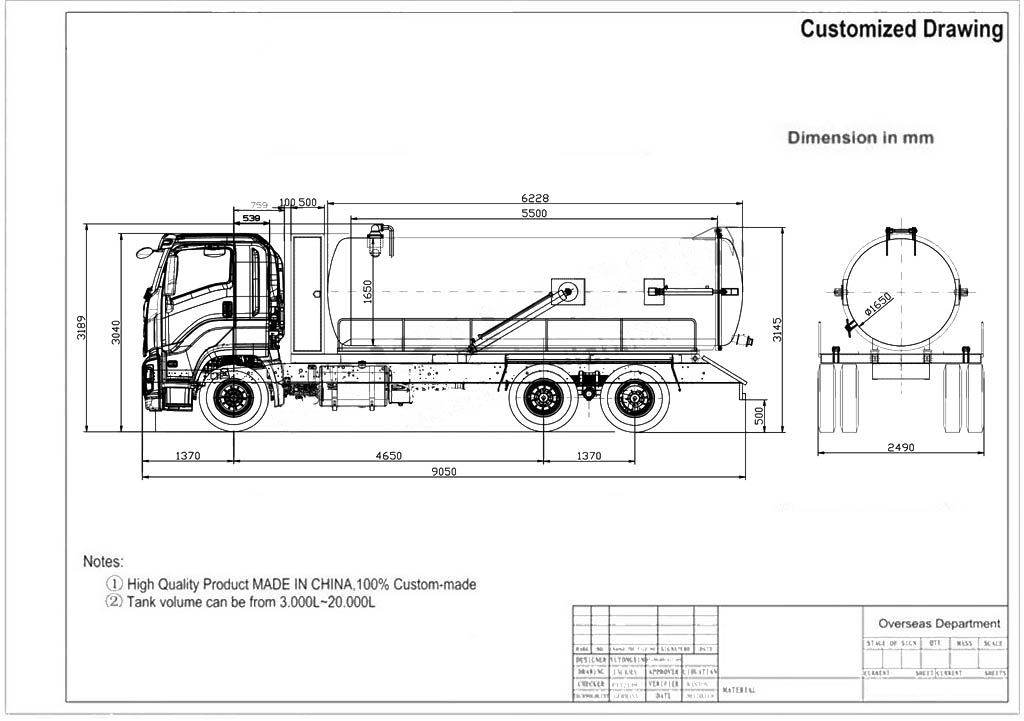

DIMENSIONS
| I. General Information | |
| Reference Overall Dimensions(mm): | 9400×2500×3200 |
| Water Tanker Capacity(L) | 16000L |
| GVW(kg): | 25000 |
| II. Chassis | |
| Chassis Model: | ISUZU GIGA FVR |
| Drive Type: | 6×4 |
| Wheelbase(mm): | 4650+1370mm |
| Cabin: | Single cabin with sleeper |
| Seats: | 2 |
| Tire Model: | 295/80R22.5 18PR |
| Standard Configuration: | A/C, ABS, power steering, etc. |
| III. Engine | |
| Model: | 6HK1-TCG60 |
| Power (HP/kw): | 301HP/221kw |
| Displacement: | 7.79L |
| Engine Type: | 6-cylinder in-line, turbocharged, etc. |
| Fuel Type: | Diesel |
| Emission Standard: | Euro3/Euro4/Euro5/Euro6 |
| IV. Upper Body Specifications | |
| Tank material | Carbon steel |
| Tank thickness | 5mm |
| Tank dimensions | 4500×2380×1500mm |
| Tank volume | 16000L |
| V.Optional Configurations | |
| For more optional configurations and requirements, please contact our sales manager directly. | |
