Body application
SPECIFICATIONS
| 自卸车：Dump Truck | |

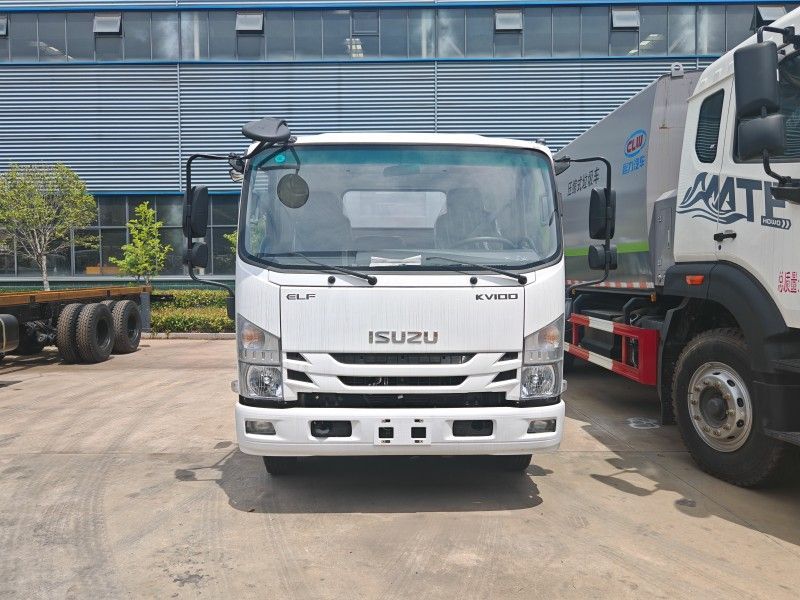

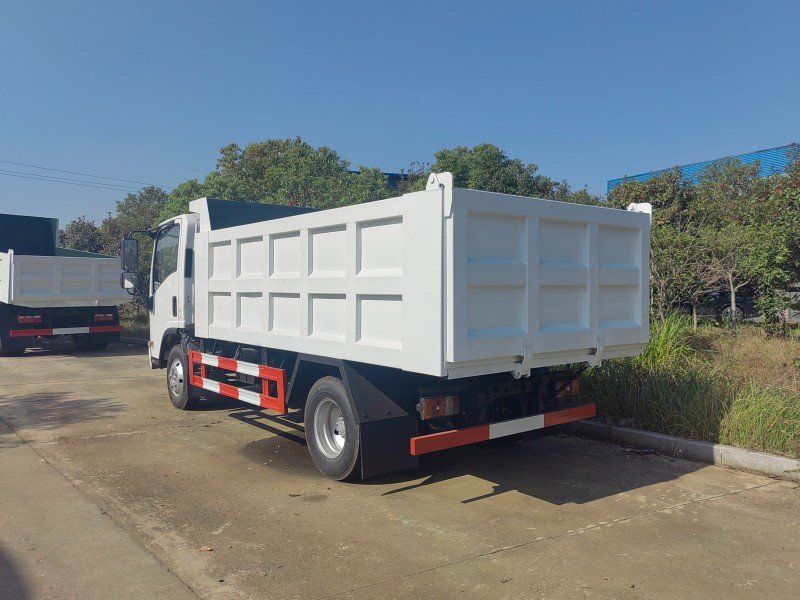

| 产品名称：NKR KV100 Dump Truck | |
| I. General Information | |
| Reference Overall Dimensions(mm): | 5995*2130*2400 |
| Capacity(CBM) / Payload(kg): | 3m³/2500-3000kg |
| GVW(kg): | 7300 |
| II. Chassis | |
| Chassis Model: | ISUZU NKR KV100 |
| Drive Type: | 4x2 |
| Wheelbase(mm): | 3360 |
| Cabin: | Single |
| Seats: | 3 |
| Tire Model: | 7.00R16LT 14PR |
| Standard Configuration: | A/C, ABS, power steering, etc. |
| III. Engine | |
| Model: | 4KH1CN6LB |
| Power (HP/kw): | 120HP/88kw |
| Displacement: | 2.999L |
| Engine Type: | 4-cylinder in-line, turbocharged, etc. |
| Fuel Type: | Diesel |
| Emission Standard: | Euro3/Euro4/Euro5/Euro6 |
| IV. Upper Body Specifications | |
| Size(mm): | 3800X2000X400 |
| Unloading Way: | Domestic Single or Double cylinder abdominal lift |
| Thickness(mm): | Bottom plate 4mm/side plate 3mm |
| V.Optional Configurations | |
| For more optional configurations and requirements, please contact our sales manager directly. | |

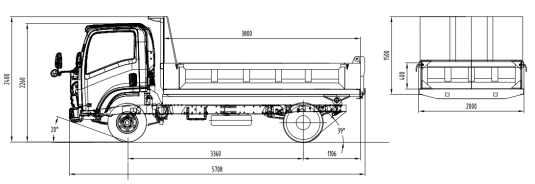

DIMENSIONS
